Fill Texture Filter Component

Overview

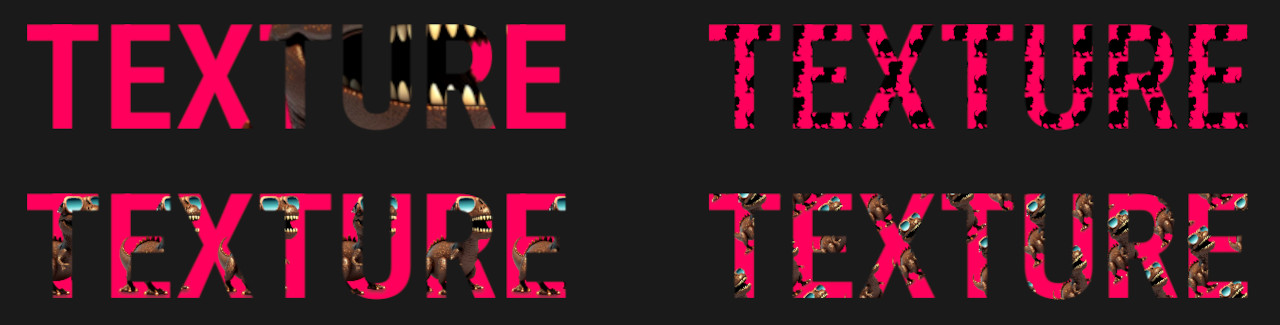

This component is fill a UI element with a texture.

WebGL Demo

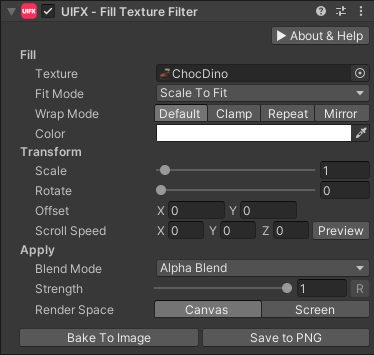

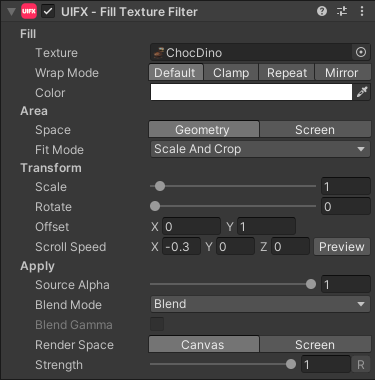

Properties

Property	Type	Range	Default	Description
Fill
Texture	Texture			The 2D texture to fill with.
Fit Mode	Enum		Scale To Fit	The fit mode to use which applies an initial scaling to the texture coordinates to describe how the texture should fit into the rectangular area of Graphic to fill. Options are: • Stretch To Fill: Stretches the texture to fill the complete rectangle. The texture will not maintain aspect ratio. • Scale And Crop: Scales the texture, maintaining aspect ratio, so it completely covers the rectangle area. If the texture is being draw to a rectangle with a different aspect ratio than the original, the image is cropped. • Scale To Fit: Scales the texture, maintaining aspect ratio, so it completely fits withing the rectangle area.
Wrap Mode	Enum		Default	The texture coordinate wrap mode to use for tiling the texture. Options are: • Default: Use the wrap mode specified in the original texture. • Clamp: Texture coordinate are clamped to [0..1] meaning the texture can not tile. • Repeat: The texture coordinates repeat infinitly producing a repeating tile pattern. • Mirror: The texture coordinates repeat with the tiling direction alternating after each repeat.
Color	Color		White	The color of the tint the texture. The texture color is multiplied by this color.
Transform
Scale	Float	[0..32]	1.0	Scale the texture coordinate to create a zoom in or zoom out effect.
Rotate	Float	[0..360]	0.0	Rotate the texture coordinates.
Offset	Vector2		0, 0	Offset the texture coordinates to translate the texture.
Scroll Speed	Vector3		0, 0, 0	Set an animation speed. XY correspondes to the texture offset, and Z corrresponds to rotation.
Apply
Blend Mode	Enum		Alpha Blend	The blending mode to apply the gradient to the original Graphic. Options are: • Replace: Replace the destination colors with the fill color. • Alpha Blend: Blend the fill color over the destination colors. • Multiply: Multiply the fill color with the destination color. • Darken: Fill with the minimum color values between the destination and fill color. • Lighten: Fill with the maximum color values between the destination and fill color. • Replace (Alpha): Only replace the alpha channel.
Strength	Float	[0..1]	1.0	Strength of the effect.
Render Space	Enum		Canvas	Which coordinate system use when rendering this filter. Options are: • Canvas: Render the filter before any transforms (scale/rotation/translation etc) are applied. • Screen: Render the filter after transforms have been applied.

Usage

Add this component to any GameObject that contains a UI Graphic component (eg Text, Image, RawImage, etc). The object will now render with a shadow.

Usage with TextMeshPro

To use this filter effect with TextMeshPro use the Filter Stack (TextMeshPro) component.

Render Space

The RenderSpace property effectively controls whether the Graphic filter is applied before or after the Transform is applied. There are two options:

• Canvas - This is the default mode for all filters. In this mode the filter is rendered to the Graphic before it is transformed into screen-space by the local Transform and by the Canvas. This means that any changes or animations to the transform (or it's parents) will not cause the filter to re-render (unless Canvas has per-pixel mode enabled), which is a performance benefit! This also means that when the Graphic is rotated, the filter will not be aware of this, so the filter will rotate as well. Imagine as drop-shadow effect.
• Screen - This was the default mode before version 1.8.0 was released. In this mode the filter is rendered to the Graphic after it is transformed into screne-space. This means that any changes or animations to the transform (or it's parents) will cause the filter to re-render which can become expensive. It has the advantage that it is possible to do some screen-aware options, such as clamping the filter to the edges of the screen, or extending an edge to the edge of the screen (for example in the Frame Filter component)

A summary of the differences:

Feature	Canvas	Screen
Adjusting transform causes filter re-render	No (unless Canvas has per-pixel mode enabled)	Yes
