MotionBlurReal Component

Overview​

This component adds a realistic motion blur effect to UI objects that are in motion.

WebGL Demo​

Properties​

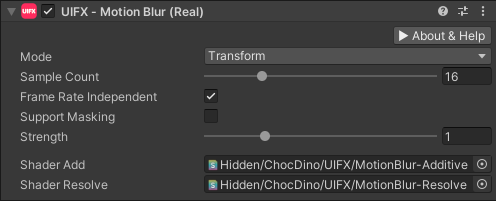

Component Screenshot

PropertyTypeDetails
Update ModeEnumWhich vertex modifiers are used to calculate the motion blur. Which vertex modifiers are used to calculate the motion blur. Options are:
• Transforms - Only use transform modifications (translation, rotation, scale), this is the simplest. (DEFAULT)
• Vertices - Only use vertex modifications.
• TransformsAndVertices - Use both of the above, this is the most expensive.
Sample CountIntThe number of motion blur steps to calculate. The higher the number the more expensive the effect. Default is 16.
Lerp UVBoolAllows interpolation of UV texture coordinates. This is usually disabled for text that has animating characters.
Frame Rate IndependentBoolAllows frame-rate independent blur length. This is unrealistic but may be more artistically pleasing as the visual appearance of the motion blur remains consistent across frame rates. Default is enabled.
StrengthFloatControls how visible the motion blur effect is by scaling the motion blur length. Setting to zero disables the effect. Above 1.0 will exagerate the length. Default is 1.0.
Shader AddShaderThe additive shader to use while rendering. The default is a modified UI shader, however if you want to use TextMeshPro or a custom UI shader, then see notes below.

Usage​

Add this component to any GameObject that contains a UI Graphic component (eg Text, Image, RawImage, etc). The object will now render with motion blur when it moves.

Quality Notes​

  • This component produces a much more accurate motion blur than MotionBlurSimple, however it is also more expensive.
  • MotionBlurReal handles transparency much better than MotionBlurSimple.

Performance Notes​

  • The MotionBlurReal component can become very slow when the motion traveled in a single frame is very large on screen. This is components performance is relative to the amount of screen space area the Graphic occupies from one frame to the next. That said we have tried to optimise this as much as possible, so even if the motion is larger than the screen area, only the screen area will be computed.

How it Works​

Within the MotionBlurReal component the following takes place each frame:

  1. Store the mesh and transforms for a UI component for the previous and current frames.
  2. Generate a new mesh containing multiple copies of the stored meshes interpolated from previous to current mesh.
  3. Rendered this mesh additively to a RenderTexture.
  4. On the next frame a quad is rendered to the canvas in place of the UI component geometry. This quad uses a shader to resolve the previously rendered motion blur mesh.
  5. If no motion is detected then the effect is disabled.

TextMeshPro (TMP) / Custom UI Components​

TextMeshPro support is coming soon. For now use the MotionBlurSimple component for TextMeshPro suppport.

Setting up a Custom UI Component​

Follow the belows steps for your custom UI component but using the MotionBlurReal component. Any custom UI component will work with MotionBlurReal as long as it renders using the standard Graphic mesh.

We need to create a copy of the shaders that are used by the UI component we want to add motion blur to. We then modify the shaders to make them render using the additive blend mode. We then assign the shader to our motion blur component.

  1. Create a new folder for the shaders.

  2. To that folder, copy the shaders that you want to use (eg TMP_SDF.shader) and copy any .cginc files it depends on.

  3. Open the shader you want to use, and rename the top line to a unique name. For example, from: csharp Shader "TextMeshPro/Distance Field" to csharp Shader "TextMeshPro/Distance Field/Add" to signify that it's an additive version.

  4. Replace the line that reads: csharp Blend One OneMinusSrcAlpha with csharp Blend One One, One One

  5. Save the file and assign that shader to the Shader Add property on the MotionBlurReal component.
